How Does an Oil-Free Nitrogen Booster Screw Air Compressor Work? An In-Depth Look at Continuous Gas Supply Technology

In high-end manufacturing, food and pharmaceuticals, precision electronics, and other industries, the demand for high-pressure nitrogen goes beyond just pressure; it also requires continuous stability, high purity, and oil-free performance. While traditional piston boosters can increase pressure, their pulsating flow and potential risk of lubricant contamination often fall short of meeting these stringent requirements. Enter the Oil-Free Nitrogen Booster Screw Air Compressor—the ultimate solution.

So, how does this technologically advanced boosting system work? This article provides a deep dive into its core principles, technical advantages, and wide-ranging applications.

What is an Oil-Free Nitrogen Booster Screw Air Compressor?

An Oil-Free Nitrogen Booster Screw Air Compressor is a gas boosting system that integrates oil-free screw compression technology. It draws in low-pressure nitrogen from a source (like a nitrogen generator or cylinder) and compresses it continuously and steadily to the required high pressure using a pair of precisely meshing screw rotors. The entire compression process is completely free of oil, ensuring 100% pure output nitrogen.

Core Working Principle: Continuous Screw Compression

Unlike the "reciprocating" motion of piston boosters, the core of a screw compressor's operation is "rotary" continuous compression. This process can be broken down into three main stages:

Stage 1: Intake Process

Low-pressure nitrogen enters the main housing through the inlet valve, filling the space between the teeth (the flute volume) of a pair of parallel, precision-machined helical rotors (one male, one female). As the rotors begin to turn, the inlet closes, sealing this flute volume and creating an isolated compression chamber.

Stage 2: Compression Process

The male rotor drives the female rotor in continuous rotation. As the rotors mesh, the volume of the compression chamber continuously decreases, thereby compressing the trapped nitrogen. The gas pressure increases smoothly as the volume reduces. This process is continuous and pulsation-free, in stark contrast to the intermittent, shock-type compression of piston machines.

Stage 3: Discharge Process

When the compression chamber connects with the high-pressure outlet, the nitrogen, now compressed to the target pressure, is continuously discharged to the downstream point of use or a receiver tank.

Simple Analogy: It's similar to squeezing toothpaste. The two rotors act like intermeshing spiral gears, steadily and continuously pushing the gas from the large-diameter back of the tube (intake end) towards the small-diameter opening (discharge end), creating high pressure at the outlet.

Technical Core: How "Oil-Free" and "Boosting" are Achieved

Oil-Free Technology:

Inside the compression chamber, there is a very small, precise clearance between the male and female rotors and between the rotors and the housing.They rotate at high speeds without touching each other, therefore eliminating any need for lubricating oil for sealing or lubrication.This fundamentally prevents oil contamination of the nitrogen, guaranteeing the highest gas purity.

Boosting Capability:

Through precision engineering of the rotor profile and length-to-diameter ratio, a high single-stage compression ratio can be achieved.

For applications requiring extremely high pressure, a two-stage, series-connected screw element configuration can be used. Nitrogen compressed in the first stage is cooled by an intercooler and then enters a second-stage screw element for further compression, ultimately reaching the required ultra-high pressure.

Key Advantages of Oil-Free Nitrogen Booster Screw Air Compressors

Continuous, Pulsation-Free Air Supply: The rotary principle ensures extremely smooth gas output with no pressure fluctuations, which is critical for sensitive processes.

100% Oil-Free Purity: Ensures end-product quality, especially vital for industries with "zero tolerance" for oil contamination like food, pharmaceuticals, and electronics.

High Reliability & Long Service Life: Fewer moving parts, excellent force balance, low vibration, and a typical design life of hundreds of thousands of hours for the main screw element.

High Energy Efficiency: Under continuous high-load conditions, screw compressors generally offer better volumetric and isentropic efficiency than piston machines, leading to lower long-term energy consumption.

Low Maintenance Costs: No need for frequent replacement of piston rings, valves, and other wear-prone parts. Primary maintenance involves periodic bearing and seal replacement, with long service intervals.

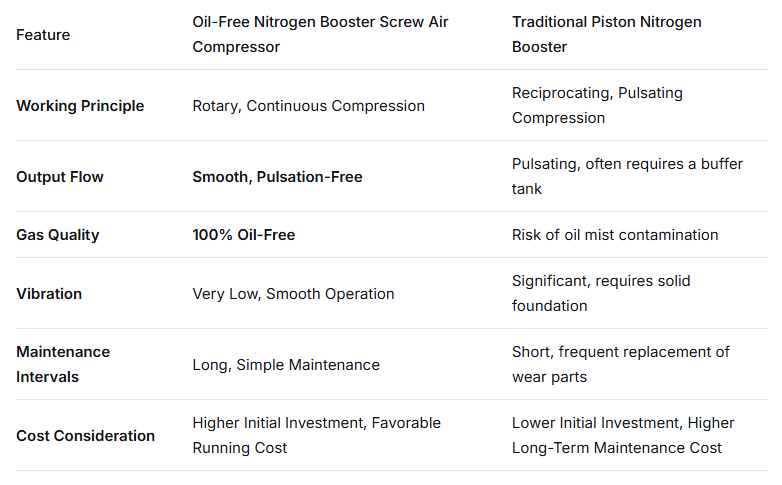

Comparison vs. Traditional Piston Nitrogen Boosters

Primary Application Areas

This advanced technology is the ideal choice for demanding applications such as:

Laser Cutting: Providing stable, clean, high-pressure assist gas for high-power lasers.

Oil & Gas / Petrochemical: Used for oil-free nitrogen purging, pressure testing of pipelines and vessels, and as a blanket gas.

Food & Beverage: Used in aseptic packaging, tank blanketing, and line pressurization where absolute hygiene is required.

Electronics & Semiconductors: Supplying ultra-pure, high-pressure nitrogen for wafer manufacturing and encapsulation processes.

Aerospace: Providing stable and reliable high-pressure gas for aircraft tire inflation and component testing.

Conclusion

In summary, the oil-free nitrogen booster screw air compressor utilizes its precision screw rotor design to achieve a continuous, steady, and oil-free compression process for nitrogen. It represents the advanced standard in high-pressure, clean gas supply technology. While the initial investment may be higher, its exceptional performance in reliability, gas quality, low maintenance, and continuous operation makes it the superior choice for industrial applications with stringent demands on gas purity and process stability.

When your process requirements evolve beyond basic "pressure" to encompass "stability, purity, and reliability," the oil-free nitrogen booster screw air compressor is the correct direction for your technological upgrade.
