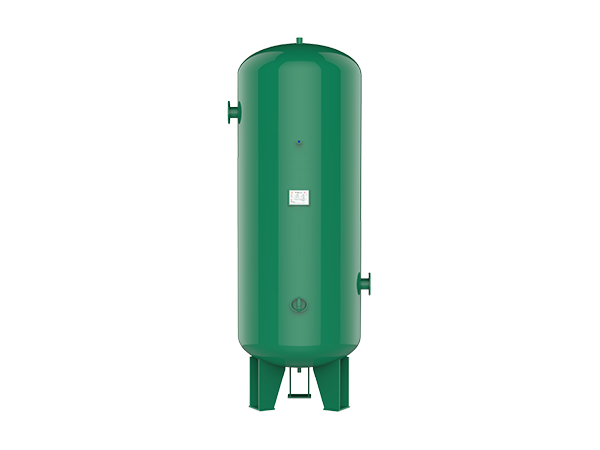

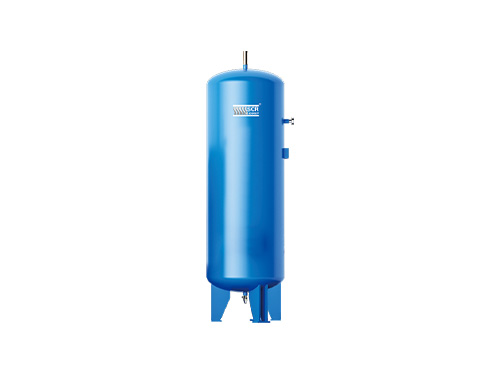

Air Tank

Design pressure: 8, 10, 13, 16, 20, 40BAR
Design working temperature: 100 ℃
Material: Q235B, 304 or 316 stainless steel is option, it can be customized according to requirements

inquiry
SAMPLE
product video
product advantages
  • 1 air receiver

    The air receiver is used to storage compressed air, reduce the periodic pulsating airflow from the compressor, maintain the stable pressure to the other equipment. It's very important equipment for the air compressor station.

product parameter
Model SCR- Capacity ID Height Inlet Outlet Supporter Safety Valve Drain Valve
m3 Φ1 mm H1 mm Flange Screw Flange Screw Φ2 mm Φ3 mm
SCR-0.3/0.8-A 0.3 500 1780 DN50 RP1 DN50 RP1 400 20 RP3/4 RP1/2
SCR-0.5/0.8-A 0.5 600 1870 DN50 RP1 DN50 RP1 420 20 RP3/4 RP1/2
SCR-0.6/0.8-A 0.6 700 1940 DN50 RP1 DN50 RP1 490 20 RP3/4 RP1/2
SCR-1.0/0.8-A 1 800 2200 DN65 RP1 1/2 DN65 RP1 1/2 560 24 RP1 RP1/2
SCR-1.5/0.8-A 1.5 1000 2300 DN80 RP2 DN80 RP2 700 24 RP1 1/4 RP3/4
SCR-2.0/0.8-A 2 1000 2750 DN80 RP2 1/2 DN80 RP2 1/2 700 24 RP1 1/4 RP3/4
SCR-3.0/0.8-A 3 1200 2850 DN100 RP2 1/2 DN100 RP2 1/2 840 24 RP1 1/4 RP3/4
SCR-4.0/0.8-A 4 1400 3050 DN100 —— DN100 —— 1050 24 RP1 1/2 RP3/4
SCR-5.0/0.8-A 5 1500 3350 DN125 —— DN125 —— 1100 30 RP1 1/2 RP3/4
SCR-6.0/0.8-A 6 1500 3850 DN125 —— DN125 —— 1100 30 RP1 1/2 RP3/4
SCR-8.0/0.8-A 8 1800 3770 DN150 —— DN150 —— 1350 30 RP1 1/2 RP3/4
SCR-10.0/0.8-A 10 1800 4250 DN150 —— DN150 —— 1350 30 RP1 1/2 RP3/4
SCR-12.0/0.8-A 12 2000 4350 DN150 —— DN150 —— 1500 30 RP1 1/2 RP1
SCR-15.0/0.8-A 15 2200 4500 DN200 —— DN200 —— 1650 30 RP2 RP1
SCR-20.0/0.8-A 20 2500 4650 DN200 —— DN200 —— 1875 36 RP2 RP1
SCR-25.0/0.8-A 25 2500 5650 DN200 —— DN200 —— 1875 36 RP2 RP1
SCR-30.0/0.8-A 30 2600 6200 DN250 —— DN250 —— 1950 36 RP2 RP1 1/4
SCR-35.0/0.8-A 35 2600 7200 DN250 —— DN250 —— 1950 36 RP2 RP1 1/4
SCR-40.0/0.8-A 40 3000 6400 DN300 —— DN300 —— 2250 36 RP2 RP1 1/4
SCR-50.0/0.8-A 50 3000 7900 DN300 —— DN300 —— 2250 36 RP2 RP1 1/4
