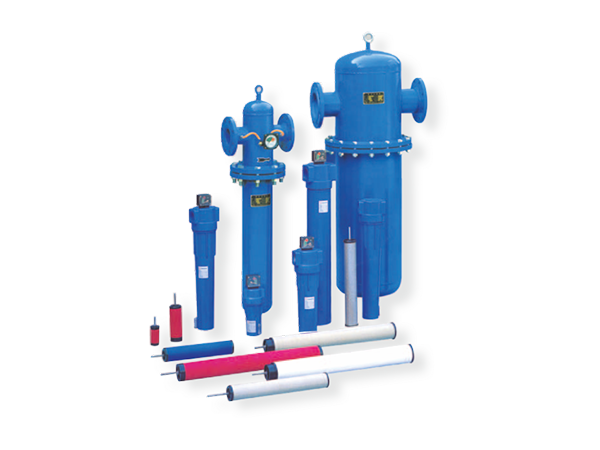

Precision Filter Series

Medium：Compressed air or corrosion-free gases lnlet Air Temperature：<60℃
operating Pressure：Standard: 0.8Mpa; Maximum: 1.3 Mpa
lnitial Pressure Drop：>0.014 Mpa
work Life：C/T/A:8000h;H: 2000h (with the pressure drop up to 0.07 Mpa as the standard)
Water Load：C : 25,000 ppm,T: 2,000 ppm,A: 100 ppm
Optional Accessories：Automatic drainage system, electronic drainage system, differential pressure meter

inquiry Contact Us

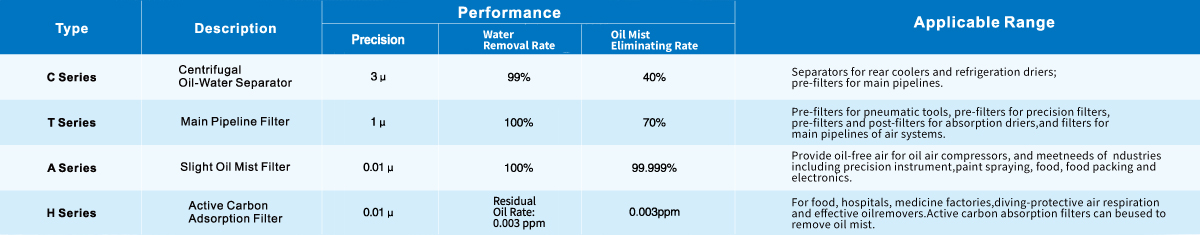

product advantages

Precision Filter Series

product parameter

Type SCR-				Processing Volume	Core Qty	Dimensions	Connection Dimensions	Weight	Dimensional Drawing
C	T	A	H	Processing Volume	Core Qty	HxW mm	Connection Dimensions	KG	Dimensional Drawing
12	12	12	12	1.2	1	267*90	G1''	1.5
23	23	23	23	2.3	1	385*110	G1-1/2''	2.5
36	36	36	36	3.6	1	515*110	G1-1/2''	3
52	52	52	52	5.2	1	515*110	G1-1/2''	3
65	65	65	65	6.5	1	515*110	G1-1/2''	3
85	85	85	85	8.5	1	628*136	G2''	4.5
110	110	110	110	11	1	800*150	G2''	5
135	135	135	135	13.5	1	950*150	G2-1/2''	11
170	170	170	170	17	1	1000*150	G2-1/2''	16
220	220	220	220	22	1	1289*375	DN80	21
270	270	270	270	27	2	1615*475	DN100	35
320	320	320	320	32	2	1460*475	DN100	35
420	420	420	420	42	2	1635*475	DN100	58
550	550	550	550	55	3	1610*475	DN125	68
650	650	650	650	65	3	1610*565	DN125	78
850	850	850	850	85	4	1890*590	DN150	95
1100	1100	1100	1100	110	5	1900*660	DN150	170
1400	1400	1400	1400	140	6	1932*700	DN150	245
