SCR Compressor

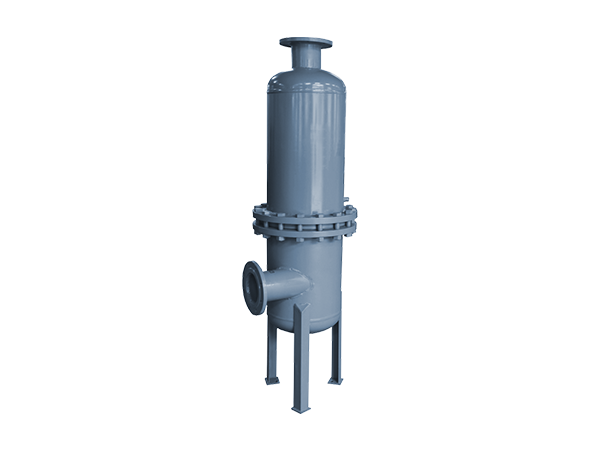

High-efficiency Oil Remover

Working pressure: 0.7 ~ 1.0MPa
Intake temperature: 0 ~ 50 ℃
Oil content of outlet gas: ≤0.1 ~ 0.001ppm
Remark: The above-mentioned parameter
pressure technical standard is 0.7MPa (other special standards can be customized)

inquiry
product parameter
Model SCR- Capacity Enter/Exit/ Connector Dimension L Weight
m³/min H1 mm H2 mm kg
SCR-20OR 2.6 Rc1'' 380 920 154 30
SCR-30OR 3.6 Rc1'' 405 1050 170 40
SCR-70OR 7.2 Rc1 1/2'' 465 1246 180 45
SCR-85OR 8.5 Rc2'' 5 1350 210 75
SCR-100OR 11 Rc2'' 580 1420 190 86
SCR-130OR 13.5 DN65 605 1530 190 95
SCR-150OR 15.2 DN80 650 1480 240 130
SCR-180OR 18.5 DN100 650 1600 240 140
SCR-220OR 22 DN100 650 1640 265 160
SCR-300OR 30 DN100 650 1640 265 165
SCR-350OR 35 DN125 650 1710 265 170
SCR-450OR 45 DN125 650 1720 290 210
SCR-550OR 55 DN150 740 1780 300 230
SCR-650OR 65 DN150 740 1890 315 260
SCR-720OR 72 DN150 835 2000 335 310
SCR-850OR 85 DN150 850 2030 360 360
SCR-1100OR 110 DN200 830 2220 380 400
SCR-1350OR 135 DN200 855 2270 430 450
SCR-1520OR 152 DN250 855 2270 430 450

Remark: For other non-standard models and specific parameters, please ask the factory for technical information. The parameters in the table are for reference only, and are subject to change without notice.
