SCR Compressor

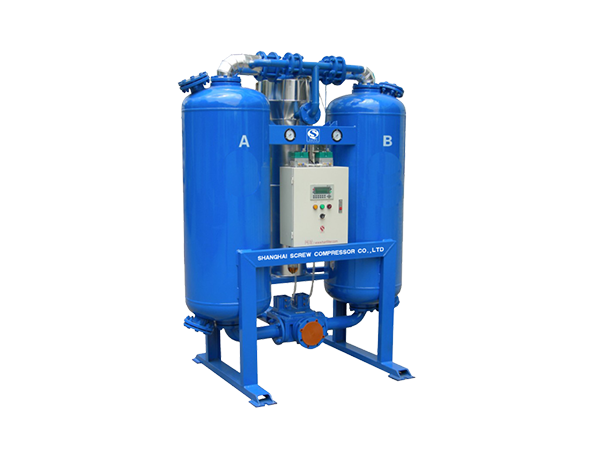

Micro-Heat Absorption Dryer

Rating Inlet Air Temperature: ≤38℃    Rating Operating Pressure: 0.8 Mpa
Applicable Range: 0.4-1.0 Mpa    Pressure Drop: <0.02 Mpa
Pressure Dew Point: -40 ℃ (0.7 Mpa)   Regeneration Mode: Micro-thermal Regeneration
Control Mode: Programmable Time Control
Regeneration Air Consumption: =7% Rating Air Capacity
Sorbent: Active Alumina   Oil Content of lnlet Air:< 0.1 mg/m3
lnstallation Mode:It should be installed in the concrete ground in rooms Not need special base and the temperature is no less than 0 ℃.

inquiry
product video
product advantages
  • 1 Automatic Control System

    Automatic control system and alarm device, ensure the safety and reliability.

  • 2 Air Controlling Dust Flter

    Air controlling dust flter prevents the dust from air controlling components, lower the valves failure rate.

  • 3 Silencer

    New design silencer is made from heat-resistant hyperfine sound-absorbing glass, the noise level ≤72dB(A).. Stainless steel disperser stabilizes, disperses and filters the air flow.

  • 4 Desiccant

    High quality desiccant activated aluminum or molecular sieve, long service life.

product parameter
Model SCR- Rating Air Heat Power Pipe Connection Dimension Weight Dimension
m3/min kW kg LxWxH mm
SCR-0036MXF 3.6 1.2 DN25 320 900*600*1630
SCR-0052MXF 5.2 1.5 DN25 425 900*600*1720
SCR-0065MXF 6.5 2.1 DN40 625 1100*650*2160
SCR-0085MXF 8.5 2.5 DN40 640 1100*650*2160
SCR-0110MXF 11 3 DN50 830 1100*650*2160
SCR-0135MXF 13.5 4 DN50 960 1100*700*2160
SCR-0170MXF 17 6 DN50 1090 1270*750*2320
SCR-0220MXF 22 6 DN50 1298 1450*800*2350
SCR-0270MXF 27 7.5 DN80 1560 1550*850*2450
SCR-0320MXF 32 12 DN80 1850 1900*1000*1680
SCR-0420MXF 42 15 DN80 2260 1800*1000*2950
SCR-0550MXF 55 15 DN100 2589 1800*1000*2950
SCR-0650MXF 65 17 DN125 2670 2100*1200*3135
SCR-0850MXF 85 27 DN125 3680 2450*1400*3170
SCR-1100MXF 110 36 DN125 4300 2450*1800*3170
SCR-1400MXF 140 42 DN150 5250 2750*1520*3170
SCR-1600MXF 160 54 DN200 6700 3200*1800*3350
SCR-1900MXF 190 72 DN200 8200 3200*1800*3352
SCR-2100MXF 210 72 DN200 8200 3200*1800*3352
SCR-2400MXF 240 85 DN200 8500 3200*1900*3550
SCR-2600MXF 260 85 DN250 8500 3200*1900*3550
