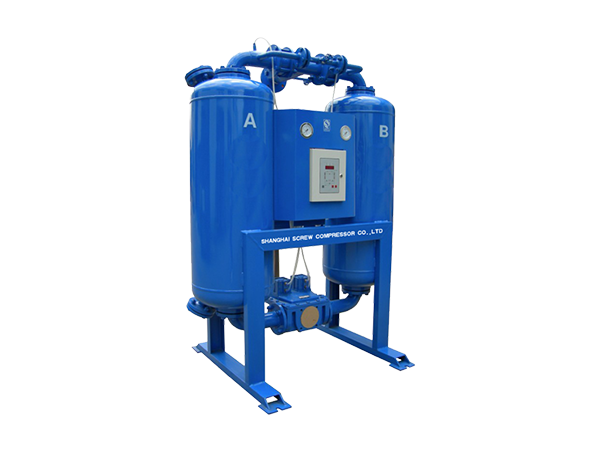

Heatless Absorption Dryer

Rating lnlet Air Temperature: ≤38℃    Rating Operating Pressure: 0.8 Mpa
Applicable Range: 0.4-1.0 Mpa      Pressure Drop: < 0.02 Mpa
Pressure Dew Point: -40 ℃ (0.7 Mpa)    Regeneration Mode: Heatless Regeneration
Control Mode: Programmable Time Control
Regeneration Air Consumption: = 12% Rating Air Capacity
Absorbent: Active Alumina    Oil Content of Inlet Air:<0.1 mg/m³
lnstallation Mode: lt should be installed in the concrete ground in rooms，Not need special base and the temperature is no less than 0 ℃.
Power Consumption: 100W

inquiry
SAMPLE
product video
product advantages
  • 1 Automatic Control System

    Automatic control system and alarm device, ensure the safety and reliability.

  • 2 Air Controlling Dust Filter

    Air controlling dust filter prevents the dust from air controlling components, lower the valves failure rate.

  • 3 Silencer

    New design silencer is made from heat-resistant hyperfine sound-absorbing glass, the noise level ≤72dB(A).. Stainless steel disperser stabilizes, disperses and filters the air flow.

  • 4 High Quality Desiccant

    High quality desiccant activated aluminum or molecular sieve, long service life.

product parameter
Model SCR- Rating Air Pipe Connection Dimension Weight Dimension
m3/min kg LxWxH mm
SCR-0012WXF 1.2 DN25 112 750*600*1465
SCR-0023WXF 2.3 DN25 245 800*600*1580
SCR-0036WXF 3.6 DN25 285 900*600*1630
SCR-0052WXF 5.2 DN25 385 900*600*1720
SCR-0065WXF 6.5 DN40 585 1100*650*2160
SCR-0085WXF 8.5 DN40 585 1100*650*2160
SCR-0110WXF 11 DN50 793 1100*650*2160
SCR-0135WXF 13.5 DN50 850 1100*700*2160
SCR-0170WXF 17 DN50 980 1270*750*2320
SCR-0220WXF 22 DN50 1208 1450*800*2350
SCR-0270WXF 27 DN80 1450 1550*850*2450
SCR-0320WXF 32 DN80 1798 1600*1000*2689
SCR-0420WXF 42 DN80 2198 1800*1000*2950
SCR-0550WXF 55 DN100 2389 1800*1000*2950
SCR-0650WXF 65 DN125 2470 2100*1200*3135
SCR-0850WXF 85 DN125 3480 2450*1400*3170
SCR-1100WXF 110 DN125 4000 2450*1400*3170
SCR-1400WXF 140 DN150 4979 2750*1520*3150
SCR-1600WXF 160 DN200 6508 3200*1800*3350
SCR-1900WXF 190 DN200 7792 3200*1800*3352
SCR-2100WXF 210 DN200 7792 3200*1800*3352
SCR-2400WXF 240 DN200 6960 3200*1900*3550
SCR-2600WXF 260 DN250 6960 3200*1900*3550
