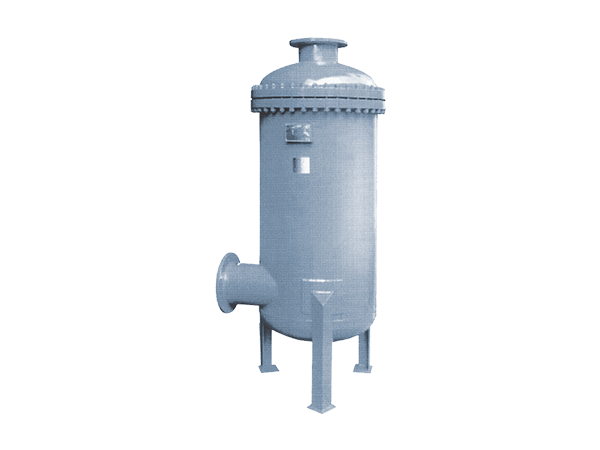

Water Separator

Working pressure: 0.7~1.0MPa
lntake temperature: 0 ~65 ℃
Filter particle size: 5μm
Water removal rate: 298%
Oil content of outlet gas: ≤10PPM
Remark: The above-mentioned parameter pressure technical standard is 0.7MPa (other special standards can be customized).

inquiry Contact Us

product parameter

Model SCR-	Capacity	Enter/Exit/ Connector	Dimension		L	Weight
Model SCR-	m³/min	Enter/Exit/ Connector	H1 mm	H2 mm	L	kg
SCR-0026WS	2.6	Rc1”	350	850	150	34
SCR-0036WS	3.6	Rc1”	350	900	170	36
SCR-0072WS	7.2	Rc11/2”	350	950	180	40
SCR-0110WS	11	Rc2”	410	1050	210	50
SCR-0152WS	15.2	Rc2”	410	1155	220	65
SCR-0185WS	18.5	DN65	450	1200	240	95
SCR-0220WS	22	DN80	450	1250	240	100
SCR-0300WS	30	DN100	475	1300	265	125
SCR-0350WS	35	DN100	475	1400	265	135
SCR-0450WS	45	DN100	515	1400	290	170
SCR-0550WS	55	DN125	530	1500	315	210
SCR-0650WS	65	DN125	585	1500	335	230
SCR-0750WS	75	DN150	595	1550	350	250
SCR-0850WS	85	DN150	585	1600	360	270
SCR-1100WS	110	DN150	610	1700	385	300
SCR-1520WS	152	DN150	625	1700	410	340
SCR-1700WS	170	DN200	655	1800	430	370
SCR-2200WS	220	DN200	665	1900	455	420
SCR-3000WS	300	DN300	675	2000	480	470

Remark: For other non-standard models and specific parameters, please ask the factory for technical information.The parameters in the table are for reference only, and are subject to change without notice.
