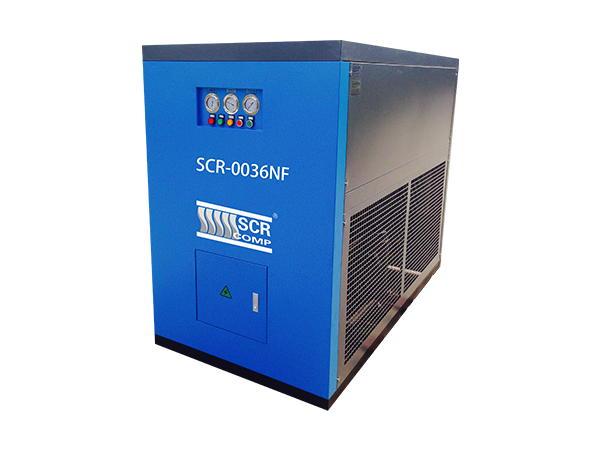

Refrigeration Dryer (Normal Temp)

Inlet air temperature: rated:38℃.highest:45℃
Working pressure: rated 0.7 Mpa
Ambient temperature:
Air cooling :≥2℃≤38℃
Water cooling:≥2℃≤45℃
Pressure dew point: 2—10℃(0.7Mpa)
Cooling water temperature: T inlet ≤31℃，T outlet ≤37℃
Cooling water pressure: 0.15--0.4Mpa

inquiry
Contact Us
product video
product advantages
  • 1 Ripple pipelines

    Ripple pipelines of the heat exchanger increase the using rate of cooling air.

  • 2 Evaporator

    Evaporator is made from laminose copper pipeline with aluminum flake, high efficiency and low energy consumption.

  • 3 drainage system

    Good drainage system, adopts 3 gardes for draining, drain out lots of condensate water and oil, so as to keep clean and dry compressed air.

  • 4 Easy for installation

    Easy for installation and free-maintenance.

  • 5 Condenser made from fin copper

    Condenser made from fin copper, good heat exchanging rate without freeze and jam.

product parameter
Model SCR- Capacity Power Enter/Exit/ Connector Dimension Weight
m³/min V/Ph/Hz Compressor
（kW） 		Fan （kW） LxWxH mm kg
SCR-0012NF 1.2 220/1/50 0.59 0.1 G1'' 650*450*820 87
SCR-0023NF 2.3 0.75 0.18 G1.5'' 800*500*820 105
SCR-0036NF 3.6 0.885 0.3 G1.5'' 900*500*820 116
SCR-0052NF 5.2 1.25 0.3 G1.5'' 1000*520*930 150
SCR-0065NF 6.5 1.69 0.3 G1.5'' 1000*580*980 190
SCR-0085NF 8.5 1.85 0.36 G2'' 1120*580*990 210
SCR-0110NF/W 11 380/3/50 2.1 0.36 G2'' 1200*580*1010 270
SCR-0135NF/W 13.5 2.34 0.36 G2'' 1300*620*1060 290
SCR-0170NF/W 17 2.98 0.78 DN65 1450*700*1285 360
SCR-0220NF/W 22 4.4 0.78 DN80 1620*780*1520 486
SCR-0270NF/W 27 4.95 0.96 DN100 1760*800*1530 570
SCR-0320NF/W 32 6.75 1.52 DN100 1900*1000*1680 700
SCR-0420NF/W 42 7.5 1.52 DN100 2100*1100*1750 860
SCR-0550NF/W 55 9 2.28 DN125 2160*1200*1750 1060
SCR-0650NF/W 65 11 2.28 DN150 2160*1300*1775 1180
SCR-0850NF/W 85 13.7 2.4 DN150 2500*1720*2130 1370
SCR-1100NF/W 110 17.7 3.85 DN150 2670*1720*2190 1500
SCR-1400NF/W 140 26.9 6.05 DN150 2700*1500*2300 1600
